Bed frames at Mattress Overstock
Bed Frames & Mattress Foundations
Pick a frame and see the whole bed to scale, from the side and from above.
Build your bed, to scale
28 inches
floor to the top of the mattress
14 in. Rise LT + 14 in. mattress
Drawn to scale from the makers' published sizes. Sheets, a protector or a topper add a little. †
From above
- Seen from above at the size you picked. Foundation sizes are the ones Sealy and Stearns & Foster publish. †
- Queen and King need a center support. Sealy and Tempur-Pedic warranties ask for at least 5 legs, one of them in the middle. Stearns & Foster asks for a rigid bridge bar with at least 5 legs. †
- Sealy and Tempur-Pedic ask for 4 legs under a Twin or Full. †
- A King foundation comes as two Twin XL halves, each 38 by 79 in. Sealy and Stearns & Foster ship them that way for easier delivery. †
- Malouf's rail frames are 70 in. long, shorter than the 74 or 79 in. foundation that sits on them. †
- The Rise LT carries the mattress by itself. Malouf says no box spring is needed. †
- This frame widens only to 60 in. For a King, pick the Universal. †
Side by side, at your size.
Each price is for Queen.
-
Malouf

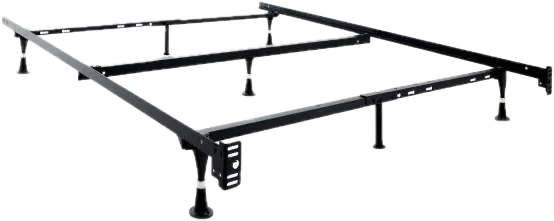

Metal Adjustable Bed Frame w/ Center Support
Height not published
A steel rail frame that widens from 38 to 60 in., for Twin, Full and Queen.
- Height
- Height not published
- What sets it apart
- Seven legs and a 1.5 in. center support on Full and Queen. Ours is the glide version, for hard floors. Malouf publishes no height for it. †
- Sizes
- Twin, Full, Queen. Not King.
-
Malouf
Universal Bed Frame
Height not published
A steel rail frame that widens from 38 to 76 in., Twin through California King.
- Height
- Height not published
- What sets it apart
- Nine legs and a 2.5 in. double-rail center support at every size. Ours is the glide version. Malouf publishes no height for it. †
- Sizes
- Twin, Twin XL, Full, Queen, King, California King
-
Malouf

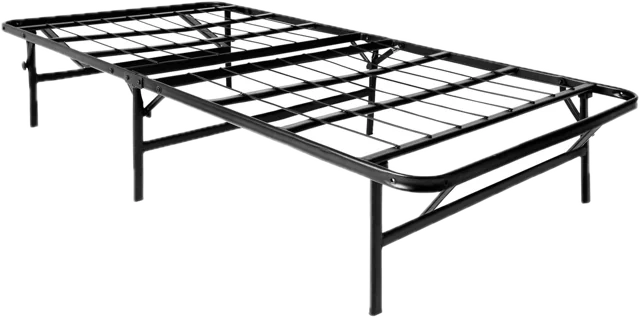

Malouf Rise LT Bed Frame
14 in. tall
A folding steel platform. The mattress goes straight on it, no foundation needed.
- Height
- 14 in. tall
- What sets it apart
- 13 in. of open space under the deck and a 2,000 lb weight capacity. Malouf sells it as the Highrise LT. †
- Sizes
- Twin, Twin XL, Full, Queen, King
Which piece do you need?
-
Bed frame
Lifts the bed off the floor. A rail frame holds a foundation. A platform like the Rise LT holds the mattress by itself.
Build it above -
Foundation
A flat, rigid base with no springs. Sealy and Stearns & Foster build theirs from wood and steel wire. A rail frame needs one. A platform does not.
See foundations -
Box spring
The older base, built with coils that give. Sealy says a traditional box spring voids its mattress warranty. Many stores, ours included, still use the name for flat foundations.
See what we carry -
Adjustable base
Takes the place of the frame and the foundation, and lifts the head and feet. The mattress goes right on it.
See adjustable bases
Where these numbers come from
Sealy, StableSupport Foundation: 9 in. and 5 in. profiles; sizes Twin 74 by 38, Twin Long 79 by 38, Full 74 by 53, Queen 79 by 60, King two pieces of 79 by 38 in.
Sealy help center: flat foundations are "made from high-grade wood, with a support structure constructed from high-gauge steel wire"; "Using a traditional box spring will void your warranty."
Stearns & Foster, Flat Foundations: 9 in. and 5 in. profiles, the same sizes, weights by size, 10-year limited warranty; help center: wood with a high-gauge steel wire support structure.
Center support: Sealy warranty, Tempur-Pedic warranty, Stearns & Foster warranty.
Malouf, Highrise LT Bed Frame: 14 in. profile, 2,000 lb capacity, no box spring needed. 13 in. of clearance: Malouf 2019 catalog, page 181.
Malouf, Adjustable Bed Frame (model numbers ST5033GL and ST6633GL, now MA5033GL and MA6633GL): seven legs and a 1.5 in. center support for Queen and Full, 38 to 60 in. wide; the Universal has nine legs, a 2.5 in. double-rail center support, 38 to 76 in. wide; both 70 in. long (Malouf product pages as archived in January 2021).
Jamison: the warranty claim form on jamisonbedding.com calls the base a box spring and asks for a frame with center support that reaches the floor. Mattress heights in the quick picks come from each mattress listing on this site.
